Fiber Cement Cladding with Thermax Continuous Insulation & Metal Stud Backup









Assembly:

 Component

Manufacturer

Product

 Interior Finish (vapor permeable)--
 Interior Gypsum Board (Type X)-  -
 Metal Stud (18 GA. Min. @16” O.C.)- -
 Stud Cavity Insulation (Optional)Dow2" Styrofoam SPF CM-2030
 Exterior Gypsum Sheathing* - -
 Self Adhered Air/Water/Vapor Barrier**Carlisle705 FR-A
 Continuous Insulation**Dow2" Thermax Sheathing

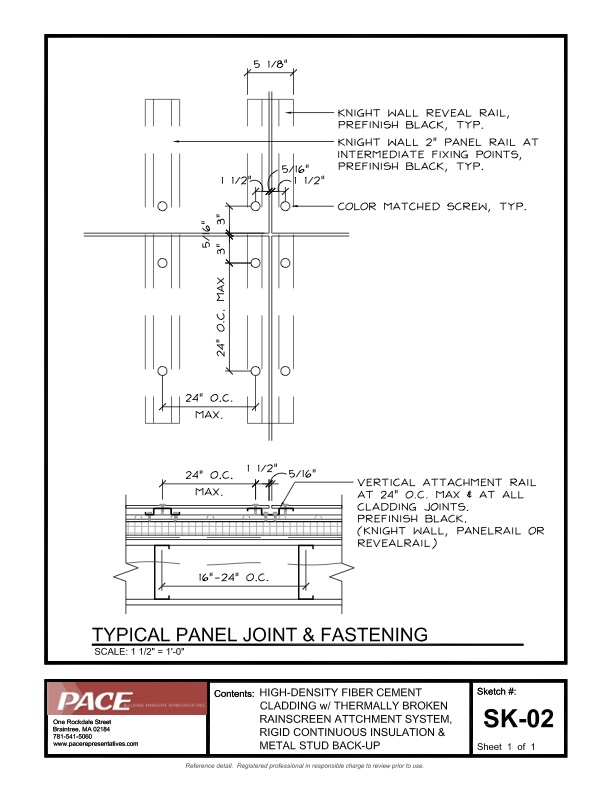

 Cladding Attachment System**Knight WallHCI System
 Fiber Cement Cladding**SVKColormat

* For a 1 hour fire rating change Exterior Gypsum Sheathing to Fire Rated Exterior Gypsum Sheathing.

** Product recommendations are based on Type I-IV construction requiring NFPA 285 assembly acceptance criteria compliance per IBC Sections 1403.5 & 2603.5.

Assembly Performance:

(proposed clear wall U-Factors are approximately 2% | 25% better than code and have 94% | 71% thermal effectiveness)

  Clear Wall

Code Minimum
(IECC 2015 - Metal Framed)

Proposed

Design R-Value: aR-13 + R-7.5ciR-13ci  |  R-12.8 + R-13ci
Total R-Value:N/AR-17.43  |  R-30.23
Effective R-Value:cN/AR-16.35  |  R-21.47
Design U-Factor: a, bU-0.064U-0.063  |  U-0.048
Effective U-Factor: cN/AU-0.061  |  U-0.047
Assembly Air Permeability0.04 cfm/ft2 @75Pa0.0014 cfm/ft2 @75Pa

a Clear wall meets energy code thermal requirements without stud cavity insulation.

b Clear wall U-Factor is based on the stud size & spacing noted above and is calculated per IECC 2015 & ASHRAE 90.1-2013 Appendix A.

c Clear wall effective thermal performance is based on the stud size & spacing noted above, manufacturer literature and industry studies on the thermal performance of facades.



Information Packages:

Contact PACE Representatives to develop a custom wall BODs, specifications and details to meet your project specific performance requirements and design conditions.


Basis of Design  Guide Specifications    Guide Details
